UV-IR Flame Detector
UV-IR Flame Detector

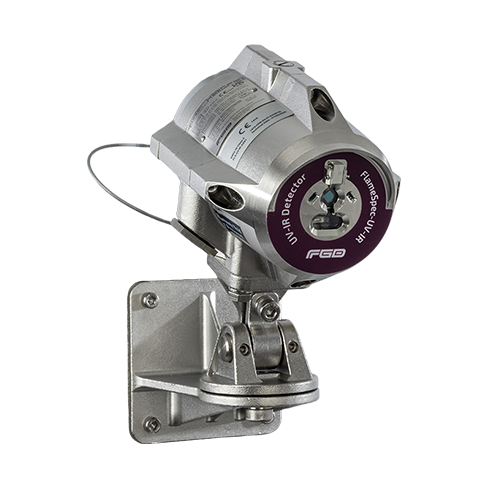

The FlameSpec™ UV-IR flame detector provides ultra-fast response, high performance, and reliable detection of a large variety of fires including hydrocarbon fires (visible and non-visible), as well as hydrogen and methane/hydrogen mixed fires.
The detector addresses slow-growing fires as well as fast eruptions of fire using improved UV-IR technology.
The detector operates in all weather and light conditions.
Key Benefits
-
High immunity to false alarms.
-
High sensitivity – up to 100 ft (30 m) for a 1 ft2 (0.1 m2) n-heptane pan fire.
-
Hydrocarbon and non-hydrocarbon flame detection.
-
Ultra-fast detection mode detection within 5 milliseconds for fireballs or explosions.
-
High-speed (<0.5 s) model [X5] available for compliance with NFPA 33.
-
Four sensitivity levels.
-
Universal outputs, 3- and 4- wire, 4—20 mA sink / source, Fire, Auxiliary, and Fault relays. RS485 port using Modbus RTU.
-
Event logger – alarms, faults and other relevant events are logged to non-volatile memory.
-
Built-In-Test (BIT) – Automatic and manual self-test of window cleanliness and overall detector operation.
-
Dirty optics warning for preventive maintenance needs.
-
HART® 7 for configuration and maintenance (option available).
-
Window heater to avoid condensation and icing.
-
Stainless steel tilt mount with horizontal and vertical adjustment.
-
Functional safety - SIL 2 capable - option available.
-
Detect high UV (sparks and arcs) or IR levels via auxiliary relay and 4—20 mA.
Downloads
Applications
Downloads
The FGD communication software is one method used to configure and monitor the FlameSpec™ range of flame detectors. The software can be easily downloaded by completing the form below:
