UV-IR-F-HD

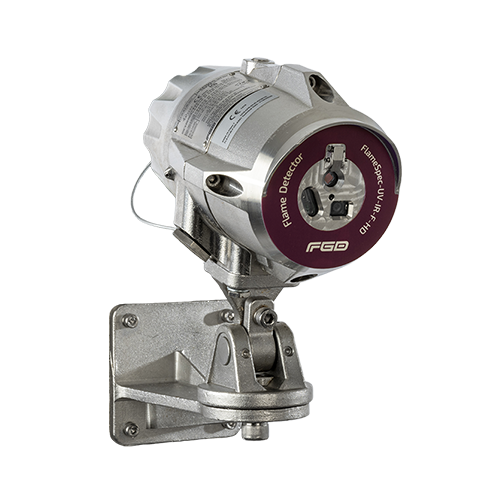

UV-IR-F Flame Detector with HD Camera

The FlameSpec™ UV-IR-F-HD flame detector provides ultra-fast response, high performance, and reliable detection of a large variety of hydrocarbon fires (visible and non-visible).

The detector addresses slow-growing fires as well as fast eruptions of fire using improved UV-IR technology operating in all weather and light conditions. The detector provides a high-definition (HD) color video output of the monitored area with clear imaging of fire events and personnel at distances up to 100 ft (30 m) allowing responders to know the exact situation before entering the hazardous area.

Video and data of events are quickly stored to non-volatile memory. The recordings start one minute before detection and continue for up to four minutes; the event video can be used for post-incident investigation.

Key Benefits

High immunity to false alarms.
Hydrocarbon flame detection, using IR spectrum in the 4.0 - 5.0μm range.
High sensitivity – up to 100 ft (30 m) for a 1 ft² (0.1 m²) n-heptane fire.
Ultra-fast detection within 5 milliseconds for fireballs or explosions.
High speed (<0.5 seconds) model [X5] available for compliance with NFPA 33.
HD or composite video output with automatic recording of fire events.
Data/Event logger: Alarms, faults, and video, as well as other relevant events are logged to non-volatile memory.
Universal outputs, 3- and 4- wire, 4—20 mA sink/source, Fire, Auxiliary and Fault relays. RS485 port using Modbus RTU.
Built-In-Test (BIT) – Automatic and manual self-test of window cleanliness and overall detector operation.
Additional dirty optics warning for preventive maintenance needs.
HART® 7 option available for configuration and maintenance.
Window heater to avoid condensation and icing.
Stainless steel tilt mount with horizontal and vertical adjustment.
Functional safety - SIL 2 capable (option available).
Detect high UV (sparks and arcs) or IR levels via auxiliary relay and 4—20 mA.
