UV-IR-HD

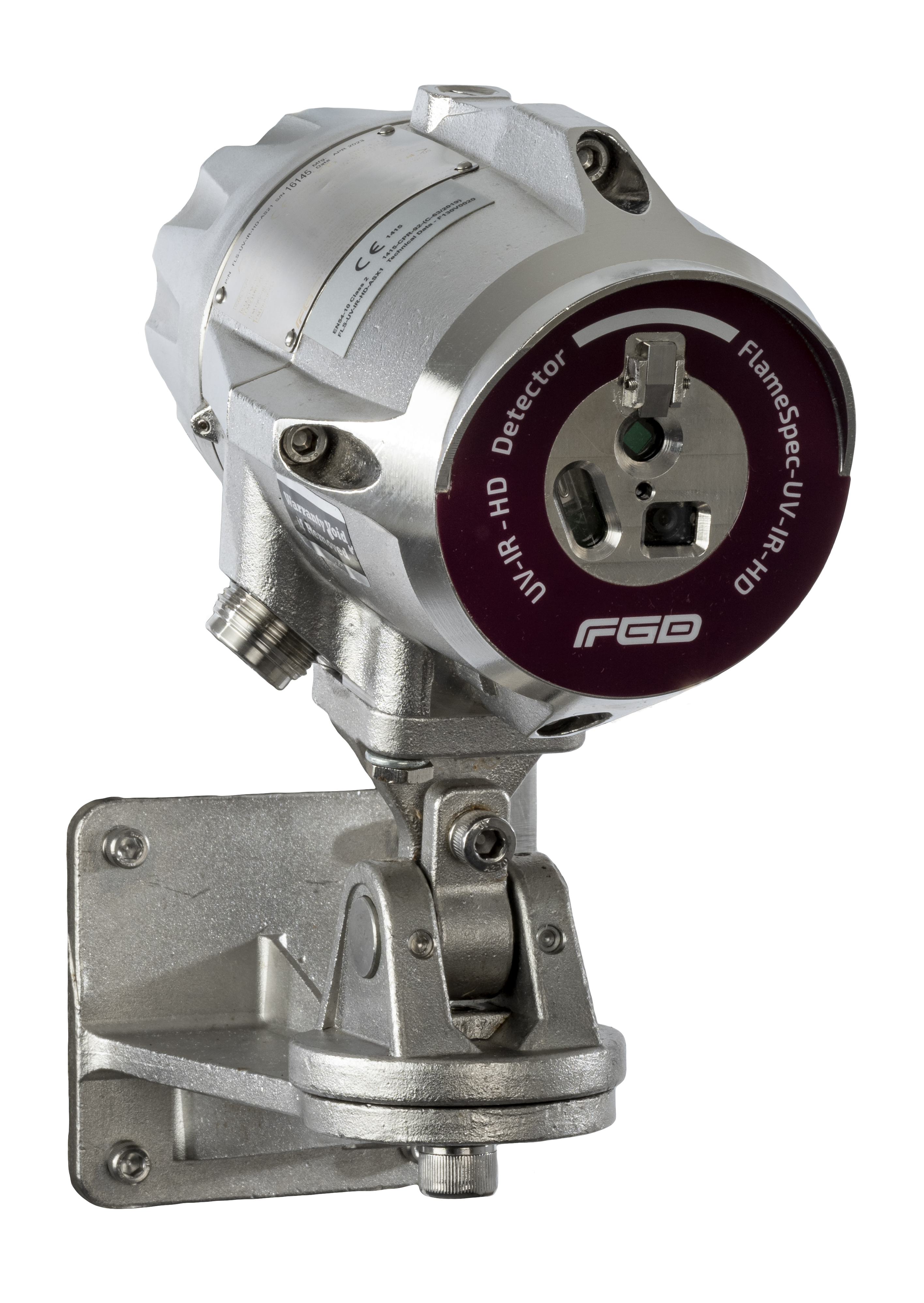

UV-IR Flame Detector with HD Camera



The FlameSpec™ UV-IR-HD flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and non-visible), hydrogen and methane/hydrogen mixed fires.

The detector addresses slow growing fires as well as fast eruptions of fire using improved UV-IR technology operating in all weather and light conditions.

The detector provides a high-definition (HD) color video output of the monitored area with clear imaging of fire events and personnel at distances up to 100 ft (30 m) allowing responders to know the exactsituation before entering the hazardous area.

Video and data of events are quickly stored to non-volatile memory. The recordings start one minute before detection and continue for up to four minutes; the event video can be used for post-incident investigation.

Key Benefits

  • High immunity to false alarms.

  • Hydrocarbon and non-hydrocarbon flame detection.

  • High sensitivity – up to 100 ft (30 m) for a 1 ft2 (0.1 m2) n-heptane fire.

  • Ultra-fast detection within 5 milliseconds for fireballs or explosions.

  • High speed (<0.5 seconds) model [X5] available for compliance with NFPA 33.

  • HD or composite video output with automatic recording of fire events.

  • Data/Event logger: Alarms, faults, and videos as well as other relevant events, are logged to non-volatile memory.

  • Universal outputs, 3- and 4- wire, 4—20 mA sink / source, Fire, Auxiliary and Fault Relays. RS485 port using Modbus RTU.

  • Built-In-Test (BIT) – Automatic and manual self-test of window cleanliness and overall detector operation.

  • Additional dirty optics warning for preventive maintenance needs.

  • HART® 7, for configuration & maintenance - option available.

  • Window heater to avoid condensation and icing.

  • Stainless steel tilt mount with horizontal and vertical adjustment.

  • Functional safety - SIL 2 capable (option available).

  • Detect high UV (sparks and arcs) or IR levels via auxiliary relay and 4—20 mA.



Downloads



Datasheet        Manual

Applications


Onshore-App-CTA

Downloads



The FGD communication software is one method used to configure and monitor the FlameSpec™ range of flame detectors. The software can be easily downloaded by completing the form below:


High Risk Operation



Eliminating the hidden costs of safety. In volatile environments, we provide the precision needed to prevent shutdowns that threaten both lives and margins.



Where hydrocarbons, confined workspaces, and human activity meet, the risk of fire and explosion is a constant reality.

Reliable detection is your first line of defense, engineered to deliver peak performance even in the most punishing heat and humidity.

Application Challenges



Onshore Industrial Oil & Gas processing is a safety critical operation



  • Harsh environmental conditions: UV exposure, humidity, dirt, and dust. Dense environment with metal structures and complex layouts make placement of flame and gas detection challenging
  • Limited access for maintenance or manual inspection
  • Safety-critical zones requiring ultra-fast, zero-false-alarm detection
  • Regulatory compliance with ATEX, IECEx, UL and CSA

Detection Strategy & Zone Types

Multi-layered safety across platform zones

Different areas of onshore facilities require tailored detection strategies:

Process Areas (Crackers, Compressors, Pipelines, Valves):



Multiple risk types can be covered by IR3, IR3-H2 or UV-IR detectors. FGD® FlameSpec™ detectors offer high speed detection and industry leading false alarm rejection.

Remote and/or Secure Areas:



The unique integrated HD video camera offers the operator the chance to analyze and assess before activating shutdown. Additionally vital information can be relayed to first responders for incident management and post event analysis saving thousands on insurance premiums.

Storage Areas:



Large area coverage and integrated HD video can reduce the device count saving on I/O points and cable. FGD® also offers unique mounting options for floating roof storage tanks

Key Certifications



The FlameSpec™ range is rigorously tested and certified to meet global safety, performance, and reliability standards.

Its comprehensive range of certifications ensures compliance with international regulations for hazardous environments, making it a trusted solution for high-stakes applications. From explosion-proof approvals to functional safety and ingress protection, these certifications validate the detector's ability to perform under the most demanding industrial conditions.

  • Explosion Proof Approvals:

    • ATEX: II 2 G D

    • IECEx: Ex db IIC T6 Gb

    • FMus & FMc: Class I, Div. 1, Groups B, C & D

    • InMetro

    • PESO

    • CCC

  • Ingress Protection: IP66 & IP68; NEMA 4X & 6P

  • Functional Safety: SIL 2 compliant per IEC 61508 (available upon request)

  • Performance Standards: ANSI FM 3260; EN 54-10
